8′ Electric Vibrating Screener
Capacity: 40 yards per hour
Weight: 900
Screen Angle: 42°
Screen Dimensions: 8′ Long, 66″ Deep, 68″ High
Freight Dimensions: 18′ Long, 66″ Deep, 72′ High
Screen Specifications: 8′ screen – expanded metal 5/8″ x 1″ diamond holeScreen Dimension: 8′ Wide, 5′ Long
Bolts: 5/16″ J-bolts with nylon locking nuts
Finish: Sherwin Williams primer and finish
Motor: 115v Earthquake Electric vibrating motor 0 3.43 amps force -712 lbs (single phase) – 60 hertz

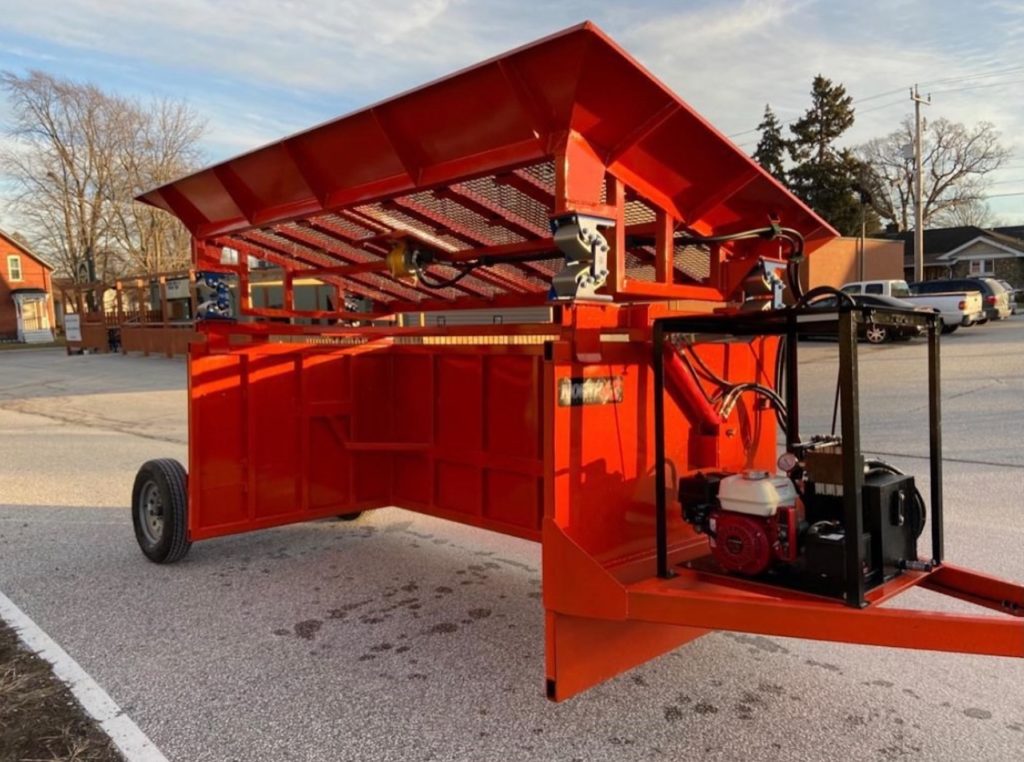

10′ Towable Gas Powered Screener
Capacity: 50 yards per hour
Engine: Electric Start 5 HP- 160 CC Honda Engine
Weight: 4500
Screen Angle: 42°
Screen Dimensions: 10′ Long, 5′ deep, 1′ catch boards
Freight Dimensions: 17.5′ Long, 6′ Wide, 7′ High
Screen Specifications: 1’x 1″ square hole wire woven rock screen. 5/16″ diameter wire
Bolts: 5/16″ bolts with nylon locking nuts
Finish: Sherwin Williams primer and finish
Towing Package: Torsion mounted axel
Tires: Sonoran ST 205/75R15
Hitch Size: 2 5/6″ ball hitch
Clearance: 8″
Hydraulic Power Pack: Vibrating deck motor. Hydraulic tilting deck. Hydraulic rear axel provides better stability. Rear axel drops lower to ground for easy set up
