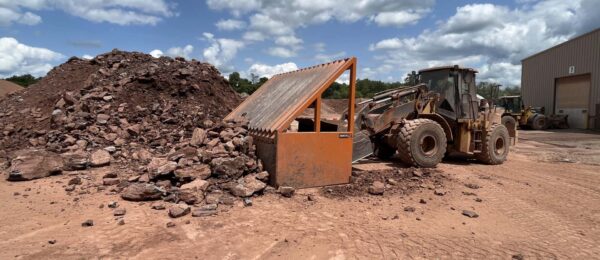

Grizzly Bars By North 42 Ventures
- Home
- /
- Grizzly Bars By North 42 Ventures
10′, 12′ 14′, 15′, AND 17′ GRIZZLY BARS
10 FOOT
- 3″ tubing
- 3/16″ wall thickness
- 10′ x 7′ high x 4’2″ deep
- 3000 lbs
12 FOOT
- 4″ tubing
- it is same specs but 2 feed wider
- 12 x 7 x 4.2 deep
- 5500 lbs
14 FOOT
- 4″ tubing
- multiple wall thickness options
- 4’x9’2″ high x 6’2″ deep
- 5500 lbs
15 FOOT
- 4″ tubing
- multiple wall thickness options
- 5’2″ x 9’4″ high x 6’2″ deep
- 6000 lbs
17 FOOT
- 4″ tubing
- multiple wall thickness options
- Factory set at
- 17′ x 9’6″ long x 6’2″ deep 7600 lbs
SCREEN ANGLE
- 42°
ROCK BREAK DOWN
- 2″ minus – 10″ minus Factory set at:
- 10 foot at 2″ 14, 15 & 17 foot at 2.5″
BARS ADJUSTABLE
- in 1″ increments

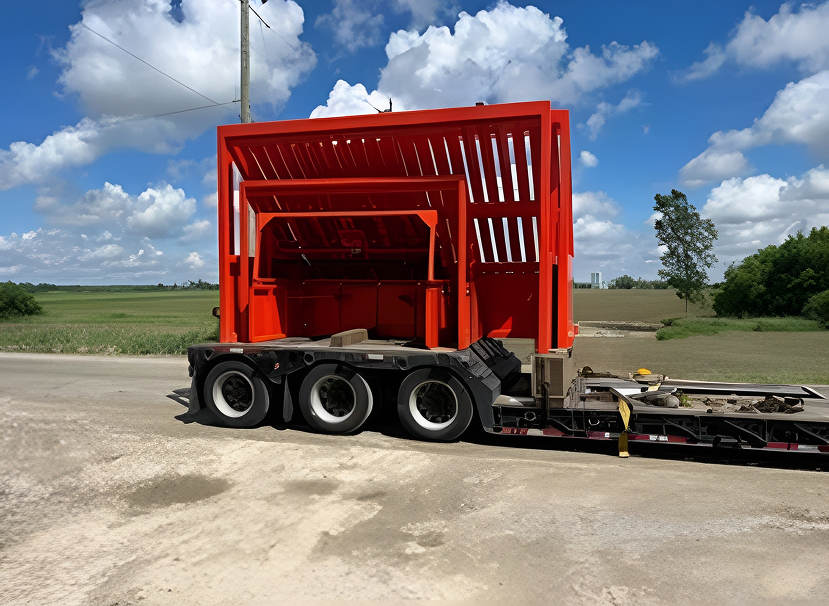

FREIGHT DIMENSIONS
- 10 foot – 7′ high x 5′ long x 10′ wide 14, 15 & 17 foot-hauling requirement is a step deck (legal transport)
FINISH
- Sherwin Williams primer and finish
OPTIONS:
- 10′ 14′ | 15′ | 17′
- Optional High Rise Self Cleaning Bars (on 14′,15′ & 17′)
- Custom overlay screen available
- Opening sizes from 1/6″ to 4″x4″ • Regular Duty-1/4″ wall thickness
- Heavy Duty-3/8″ wall thickness
- Extreme Duty-1/2″ wall thickness & 9″ spacing
Made in Canada
ELECTRIC
Starting From $8,995
Contact Us Today
To learn more about our Grizzly Bars, request a quote, or schedule a consultation.
