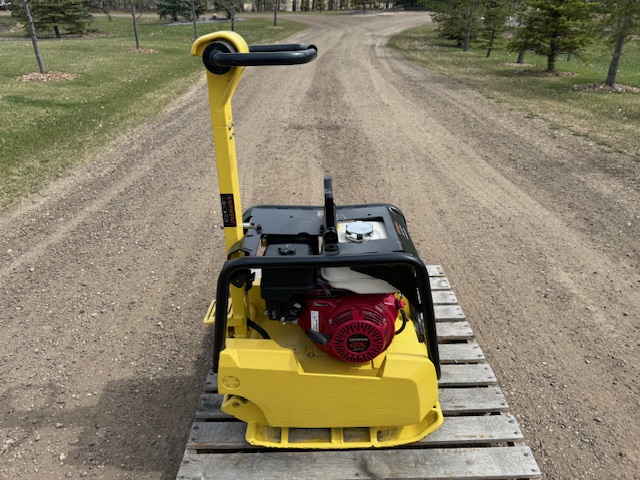

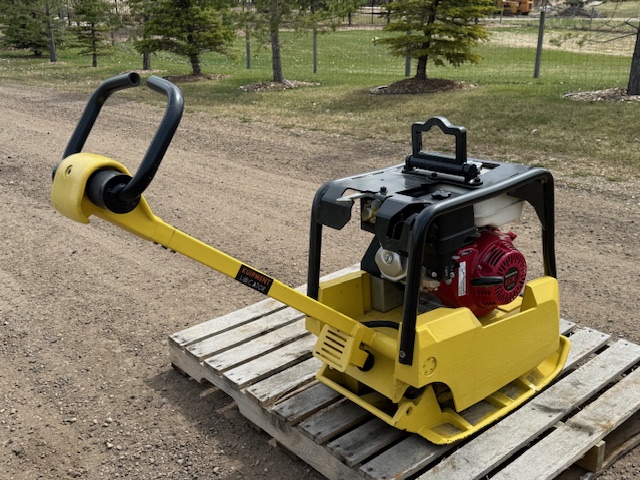

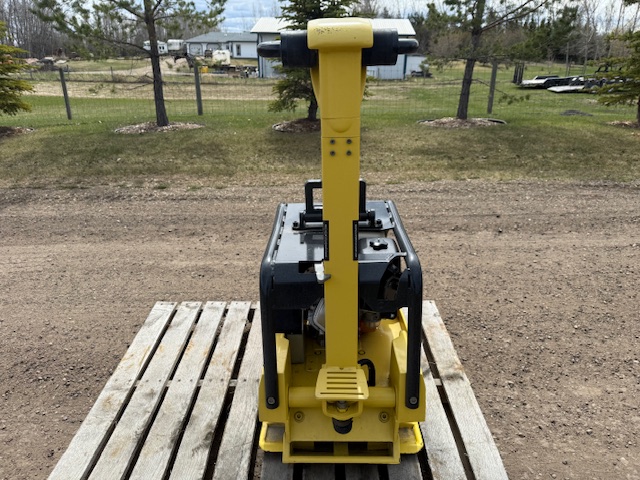

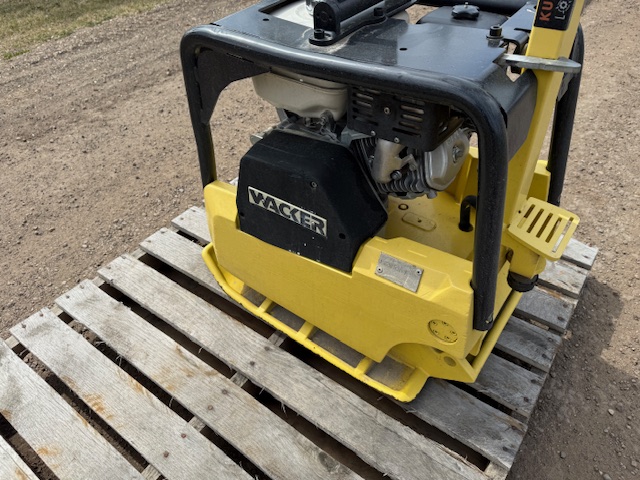

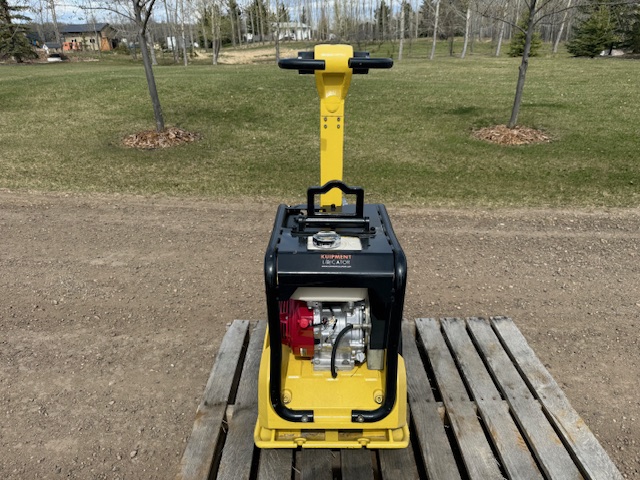

2006 Wacker BPU 3050A Reversible Walk Behind Plate Tamper

$2,895.00

Forward And Reverse

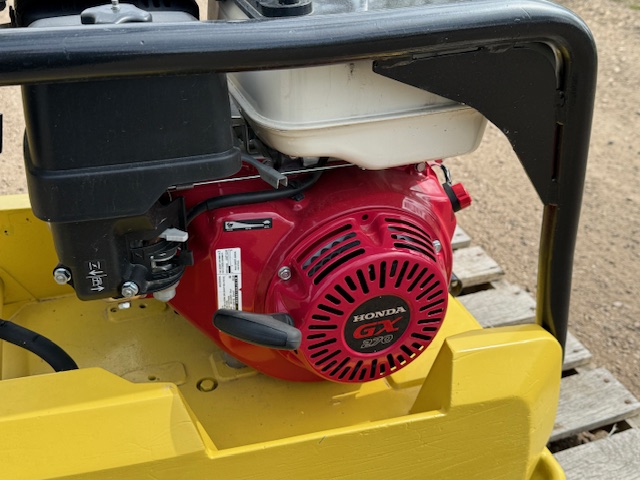

New Honda GX270 Commercial Grade Gas Engine
Operating Weight 368 Pounds

Clean Unit
Description Metric Imperial
Operating weight 166 kg 366 lb
Working width 733 x 500 mm 28.9 x 19.7 in
Machine height 697 mm 27.5 in
Working height of handle (adjustable) 800 – 1.143 mm 31.5 – 45.0 in
Base plate thickness 10 mm 0.4 in
Max. centrifugal force 30 kN 6,750 lbf
Vibration frequency 90 Hz 90 vpm
Max. forward and reverse travel 21 m/min 68.9 ft/min
Max. gradeability (depending on soil) 30 % 30 %
Compacted area (depending on soil) 630 m
2
/h 6,781 ft2
/h
Drive engine air-cooled single cylinder 4-stroke petrol engine
Manufacturer Honda Honda
Type GX 270
Max. power output (DIN-ISO 3046*) 6,6 kW 9.0 hp
at 3.600 1/min 3,600 rpm
Rated power output 1,9 kW 2.6 hp
at 2.800 1/min 2,800 rpm
Fuel consumption 1,1 l/h 1.2 US qt/h
Tank capacity 5 l 5.3 US qt
Max. allowable tilt of engine in continuous operation 19 ° 19 °
Power Train from drive engine via centrifugal clutch and V-belt directly to the Exciter

$73.17/month OAC



Financing Available

I’M INTERESTED

Category: Tags:

Specifications

Make

Wacker BPU 3050A Reversible Walk Behind Plate Tamper
Year

2006
