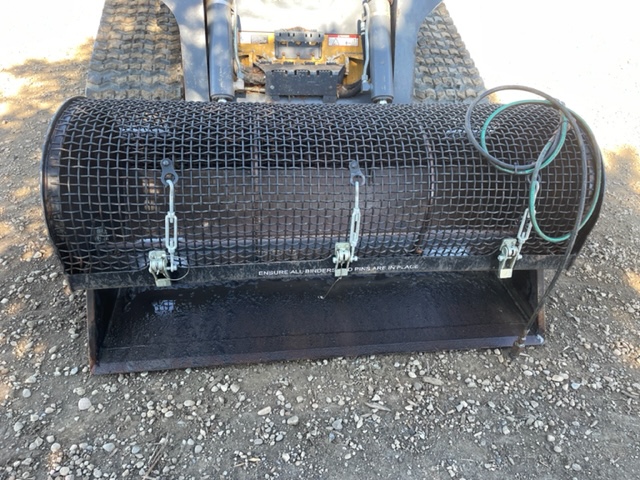

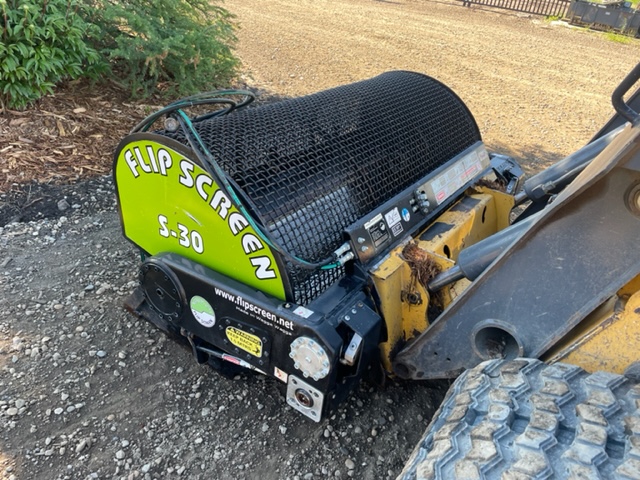

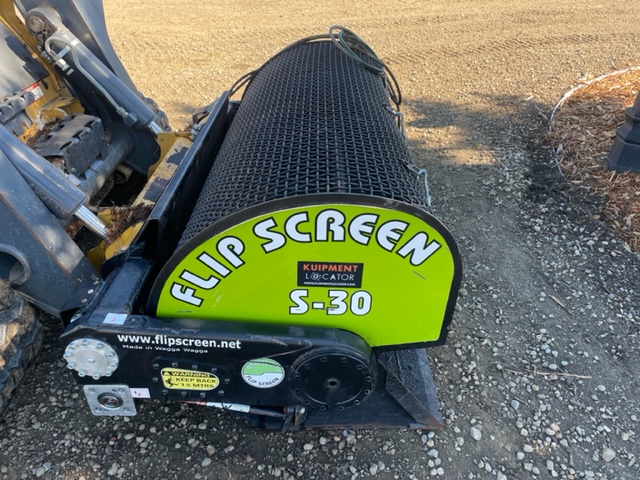

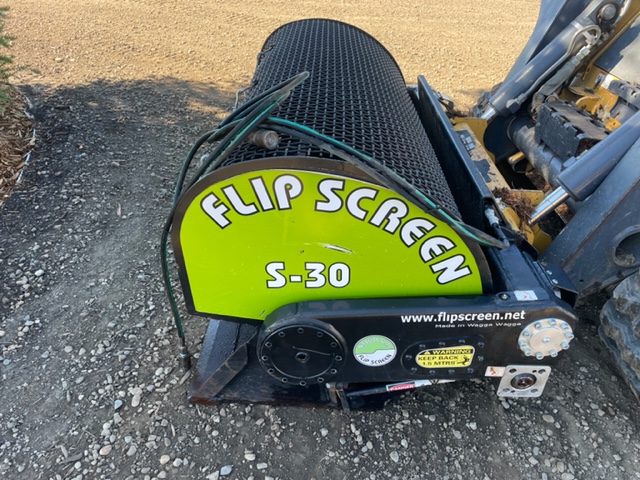

Used Flip Screen S-30 Rotating Screener Bucket

You are here:

Sale!

Name: Used Flip Screen S-30 Rotating Screener Bucket
SKU: 48582
Availability: InStock

Original price was: $12,995.00.Current price is: $12,495.00.

Specifications

Universal Skid Steer Quick Attach

C/w Hoses And Flat Face Couplers

$12,995.00

S30 Specification
Minimum Static Tipping Load = 1722kg (3796lbs)based on 1.6t/m3
Bucket Opening	mm	1600 x 330
Bucket Opening	inches	63 x 13
Scoop Size	m³	0.3
Scoop Size	yd³	0.39
Total Volume	m³	0.9
Total Volume	yd³	1.17
Weight	kg	347
Weight	lbs	765
Height	31″	79cm
Width	69″	176cm
Length	40″	101cm
Flow	L/min	45
Flow	G/min	9.9
Pressure	bar	155
Pressure	psi	2248
Hydraulic Fitting	Inlet & Outlet Thread	9/16″-18 JICMale
Hydraulic Fitting	Case Drain Thread	NA
Screen Area	m²	2.1
Screen Area	ft²	22.6
Carrier Size	Min 1.5t	Max 2.5t
Estimated screening rate of topsoil and rock with a 2″/50mm mesh: 54yd³/42m³ per hour.
