Specifications
| Make | Used Virnig Two Cylinder Mat And Pipe Pallet Fork Grapple |
|---|---|
| Model | PPFG248 |

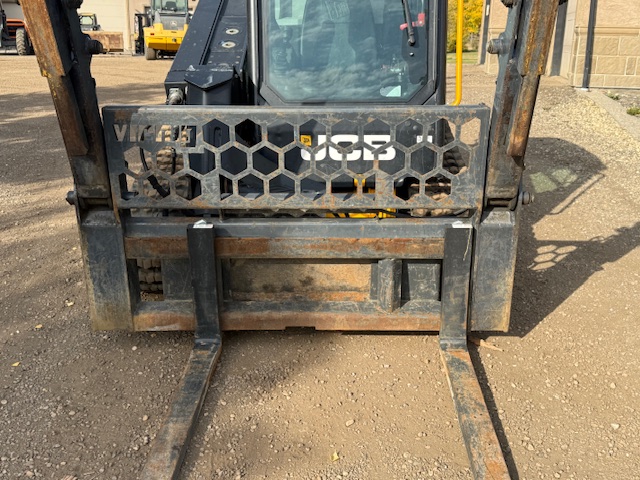

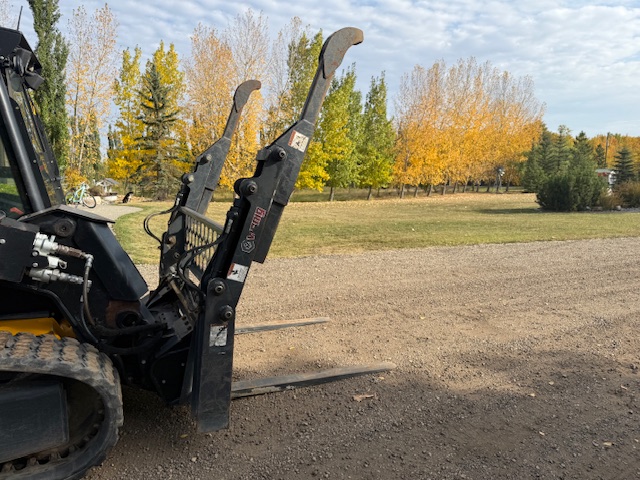

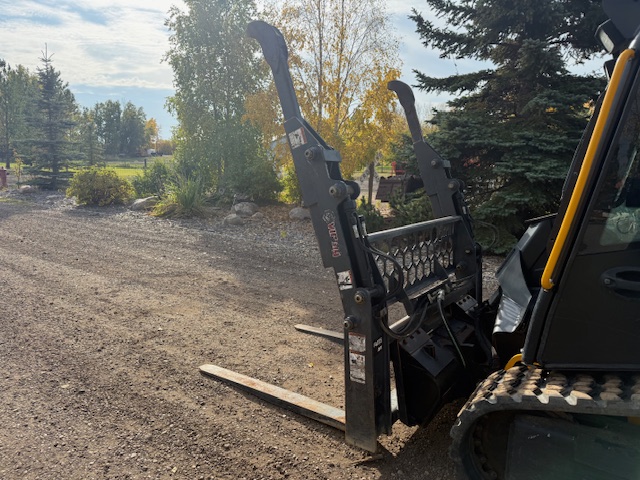

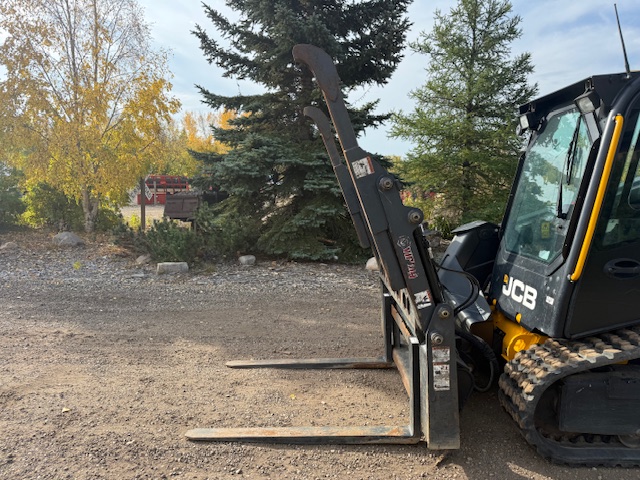

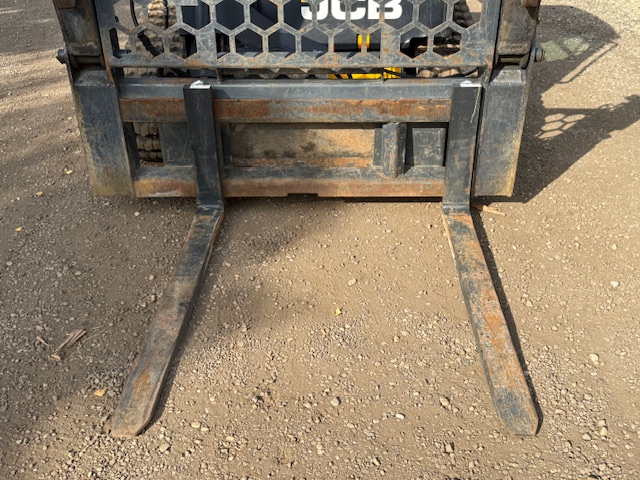

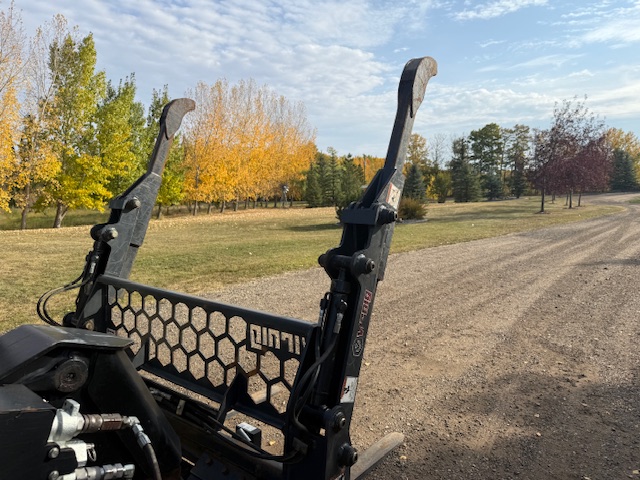

Used Virnig Two Cylinder Mat And Pipe Pallet Fork Grapple
$6,495.00
MODEL PPFG248
Overall Width (Inches) 70.8
Overall, Height: Open / Closed (Inches) 81.4 / 40.4
Overall Depth (Inches) 56.0
Grapple Arm Width (Inches) 8.3
Tine Space: Min / Max (Inches) 8.9 / 49.1
Tine: Length / Width / Thickness (Inches) 48.0 / 4.0 / 1.75
Cylinder Bore / Stroke (Inches) 2.0 / 8.375
Cylinder Pins / Hinge Pins Diameter (Inches) 1.25 / 1.25
Lift Capacity (Pounds) 6200
Approximate Weight (Pounds) 920
Recommended Loader Capacity Greater than 1500 pounds
C/w Hoses And Flat Face Couplers
$155.75/month OAC
Additional Information
MODEL PPFG248
Overall Width (Inches) 70.8
Overall, Height: Open / Closed (Inches) 81.4 / 40.4
Overall Depth (Inches) 56.0
Grapple Arm Width (Inches) 8.3
Tine Space: Min / Max (Inches) 8.9 / 49.1
Tine: Length / Width / Thickness (Inches) 48.0 / 4.0 / 1.75
Cylinder Bore / Stroke (Inches) 2.0 / 8.375
Cylinder Pins / Hinge Pins Diameter (Inches) 1.25 / 1.25
Lift Capacity (Pounds) 6200
Approximate Weight (Pounds) 920
Recommended Loader Capacity Greater than 1500 pounds
C/w Hoses And Flat Face Couplers
$6,495.00
