Screeners By North 42 Ventures
- Home
- /
- Screeners By North 42 Ventures

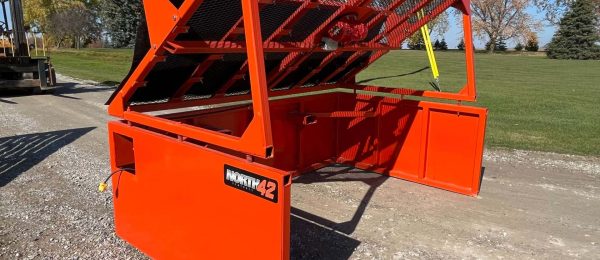

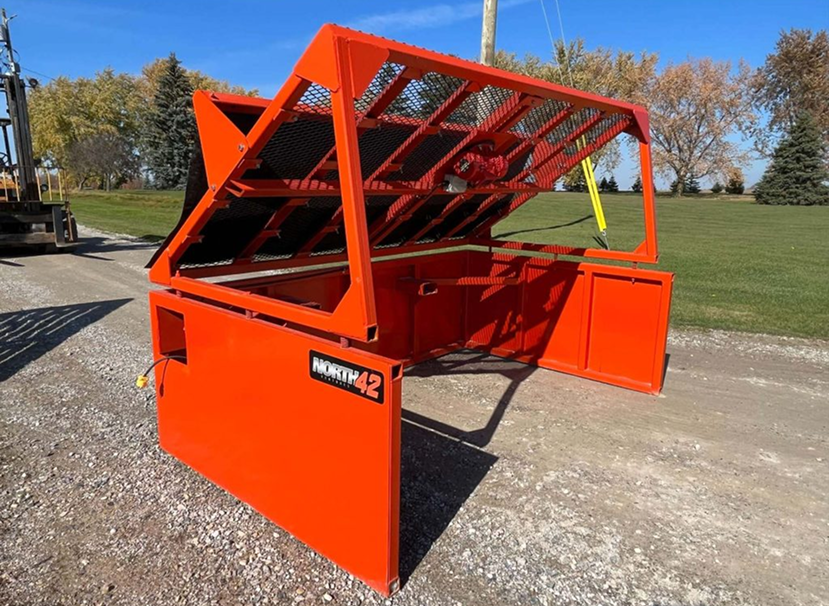

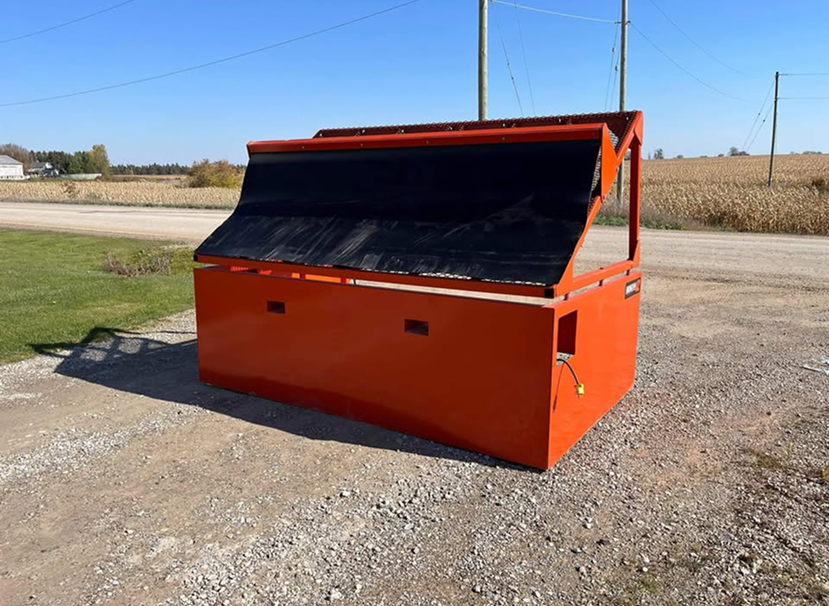

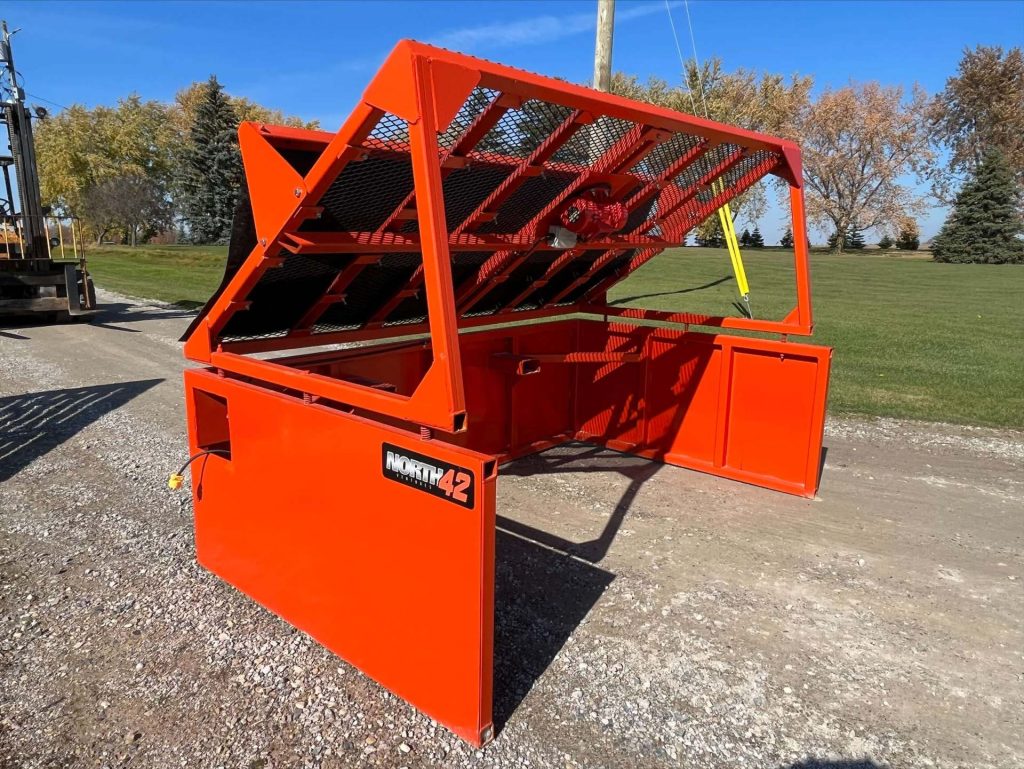

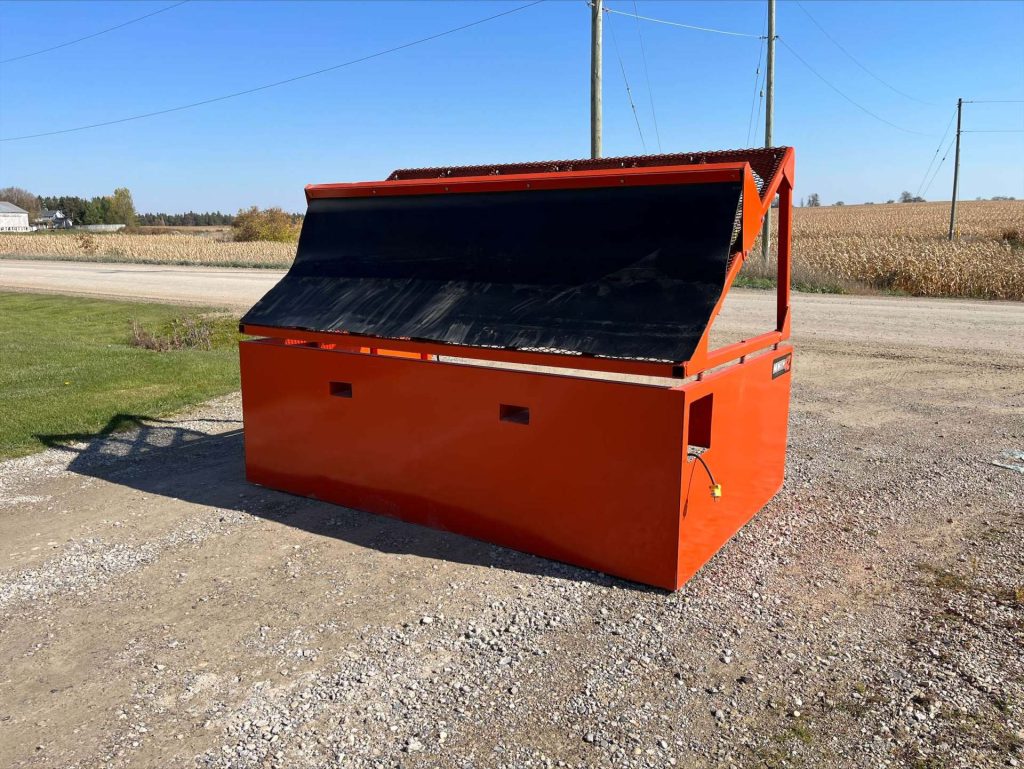

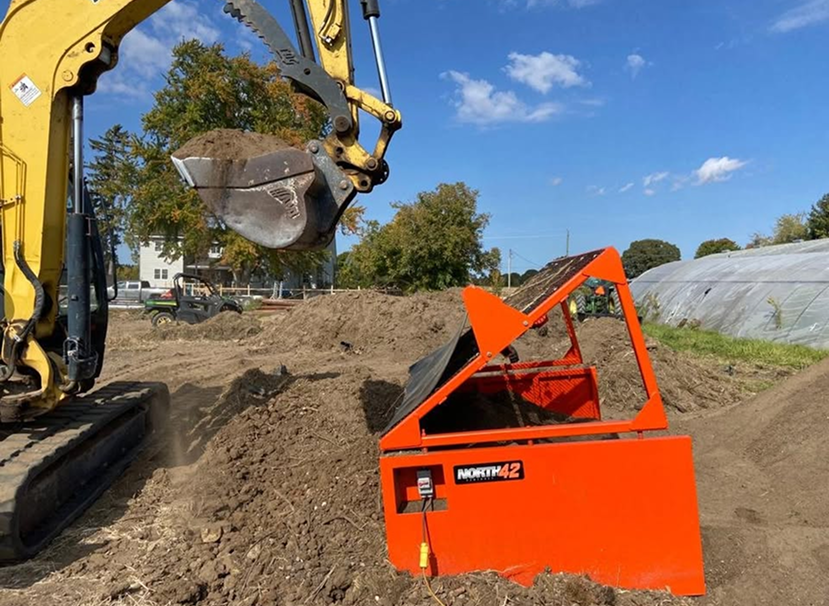

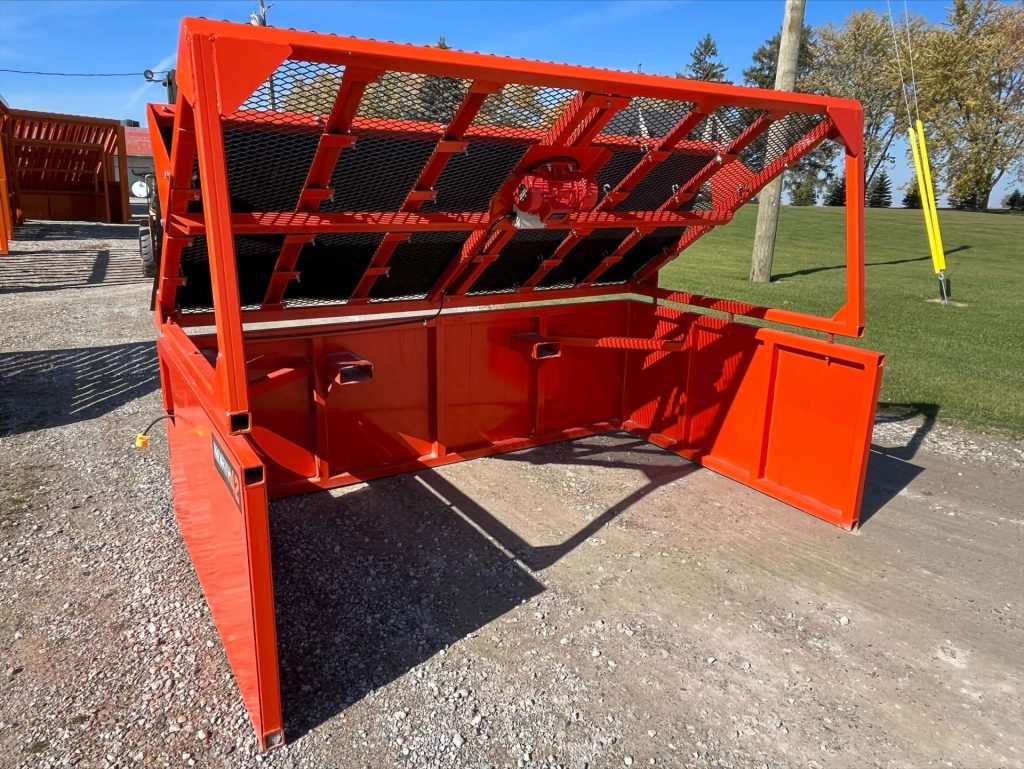

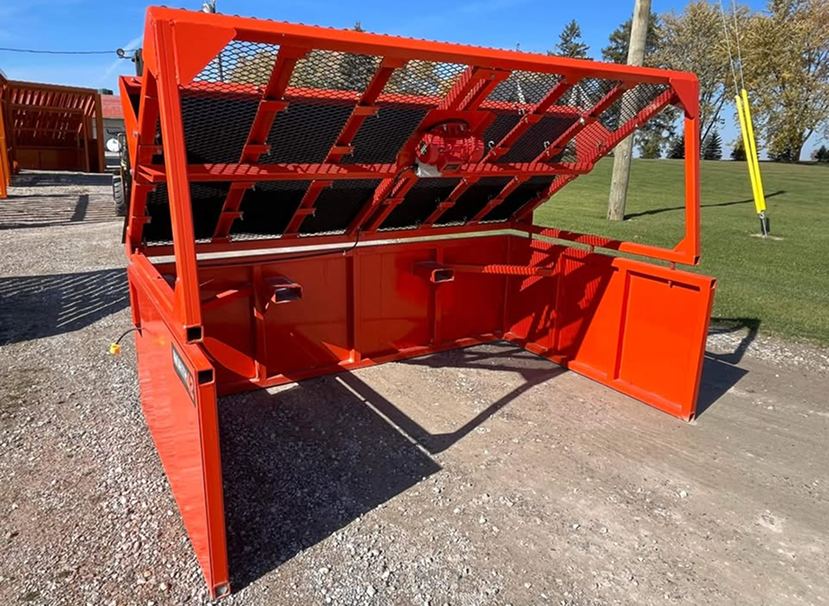

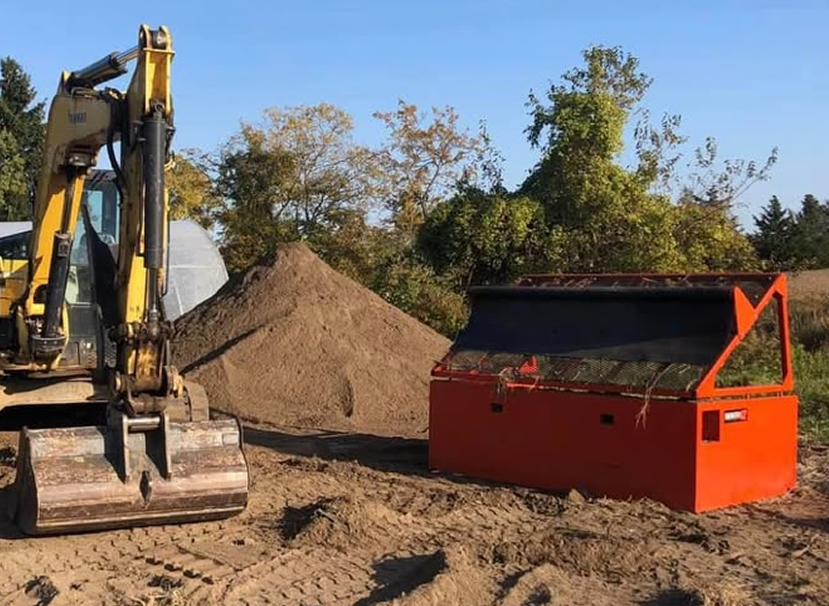

8' ELECTRIC VIBRATING SCREENER
CAPACITY
- 40 yards her hour
WEIGHT
- 900 lbs
SCREEN ANGLE
- 42°
SCREENER DIMENSIONS
- 8″ wide x 66″ deep x 68″ high
PLUG IN & START SCREENING
- 110v Electric Motor
SCREEN SPECIFICATIONS
- 8′ wide x 5′ long
- Expanded metal 5/8″ x 1″ diamond hole screen
FREIGHT DIMENSIONS
- 8′ wide x 66″ deep
- 72″ high (including skid)
FINISH
- Sherwin Williams primer and finish
MOTOR
- 110v Earthquake Electric vibrating motor
- 3.43 amps force – 712 lens (single phase) – 60 hertz
ELECTRIC
Starting From $8,995

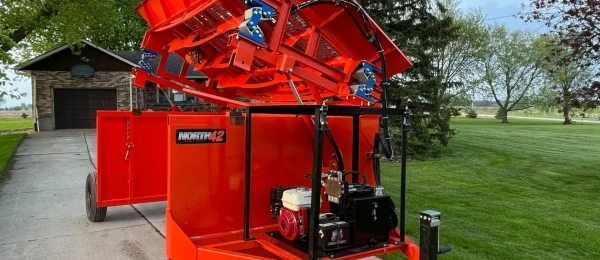

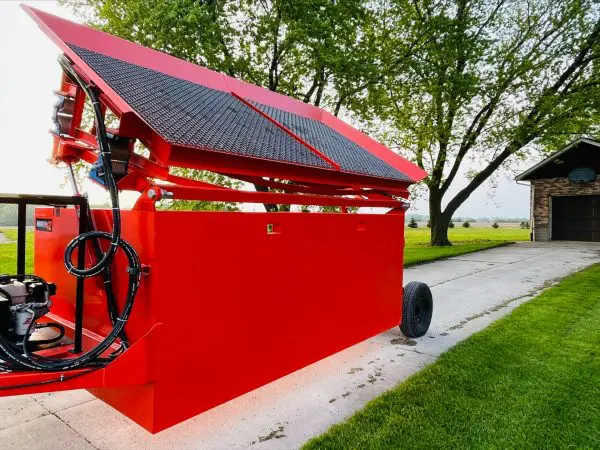

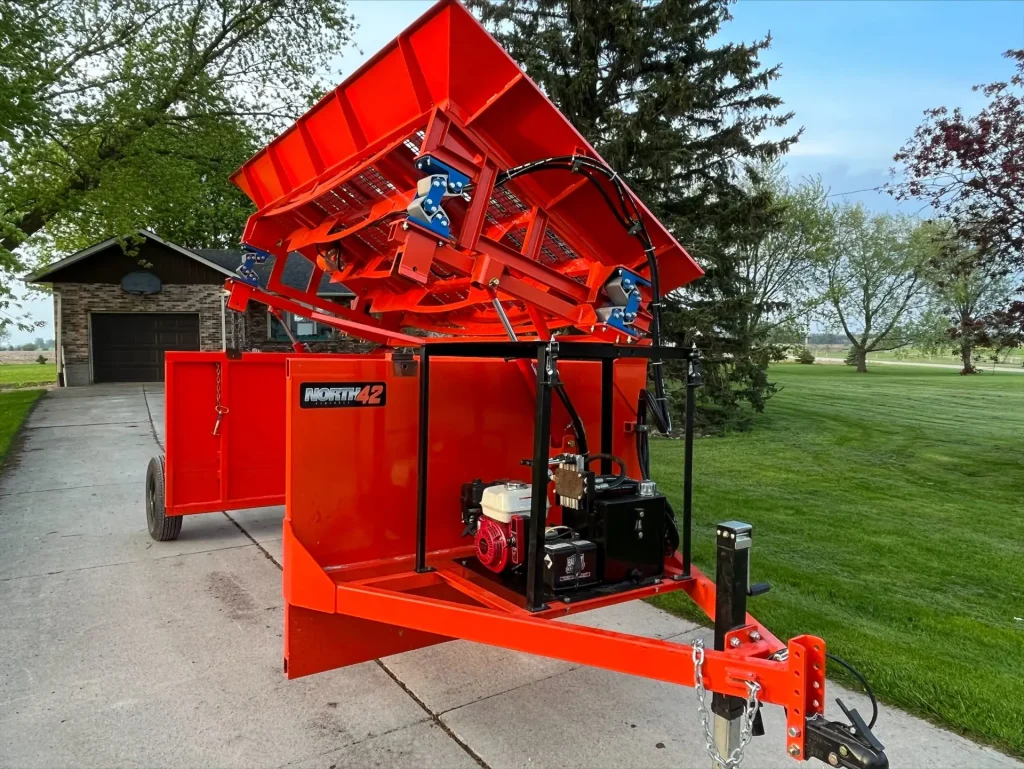

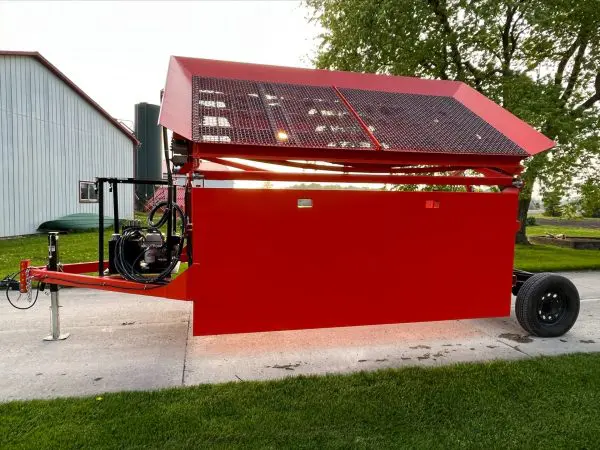

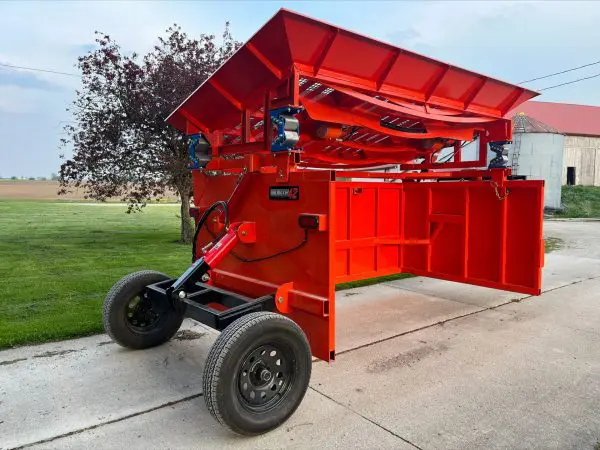

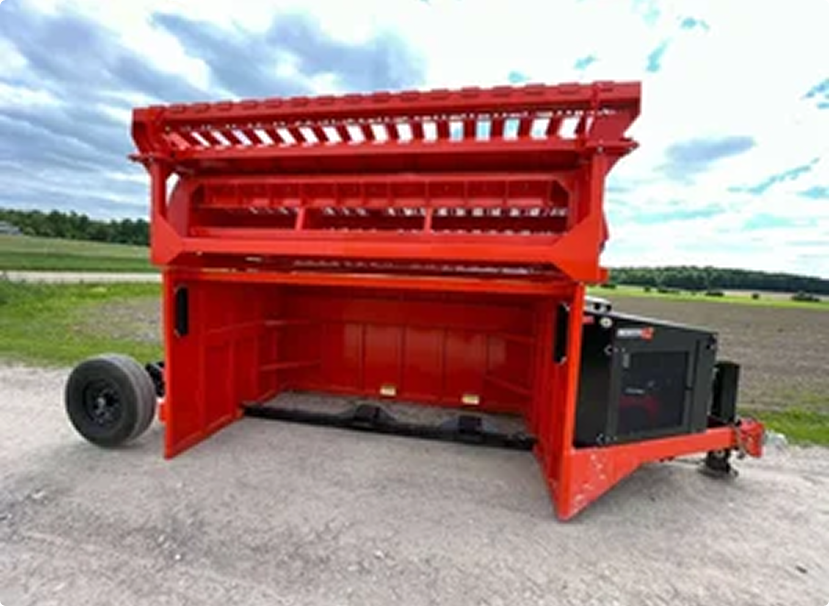

10’ TOWABLE GAS POWERED SCREENER
CAPACITY
- 50 yards her hour
WEIGHT
- 4500 lbs
SCREEN ANGLE
- Adjustable hydraulic tilting deck 15° lowered – 46° raised
SCREENER DIMENSIONS
- 10′ wide x 5′ deep
- 1′ catch boards
HYDRAULIC POWER PACK
- Vibrating deck motor
- Hydraulic tilting deck
- Hydraulic rear axel provides better stability
- Rear axel drops lower to ground for easy set up
SCREEN SPECIFICATIONS
- 8′ wide x 5′ long
- 1″ x 1″ square hole wire woven rock screen
- 5/16″ diameter wire
FREIGHT DIMENSIONS
- 6′ wide x 7′ high x 17.5′ long
FINISH
- Sherwin Williams primer and finish

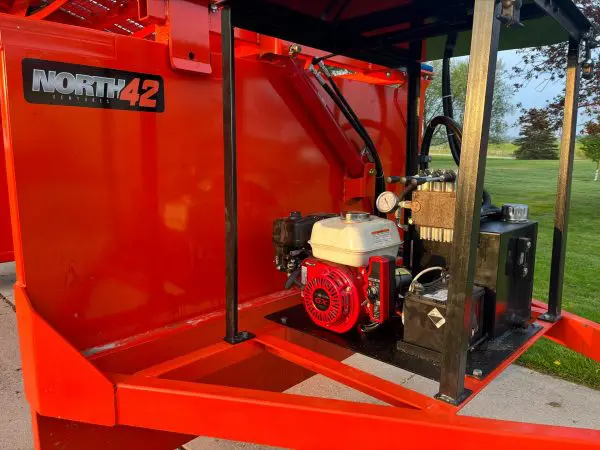

ENGINE
- 20.8 HP Honda GX630 Gas Engine
TOWING PACKAGE
- Torsion mounted axel
- Electric brakes & lights
Tires – 235/80R16
- 25/16″ hitch
TOWABLE
Starting From $34,995

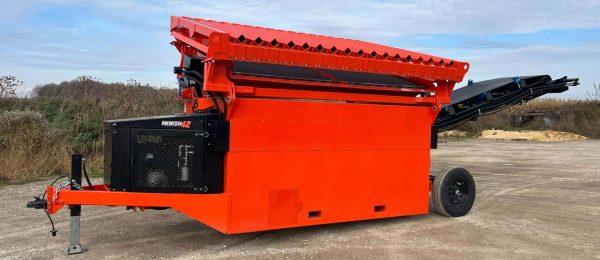

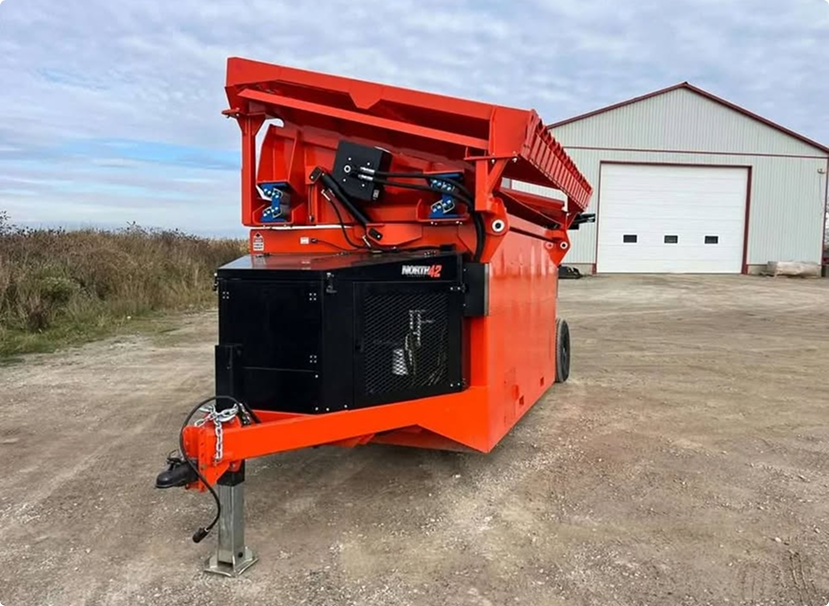

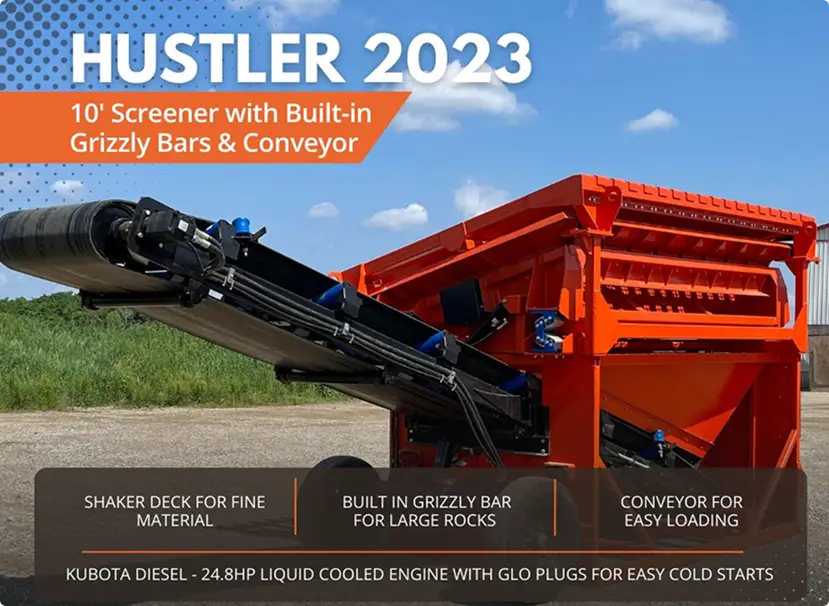

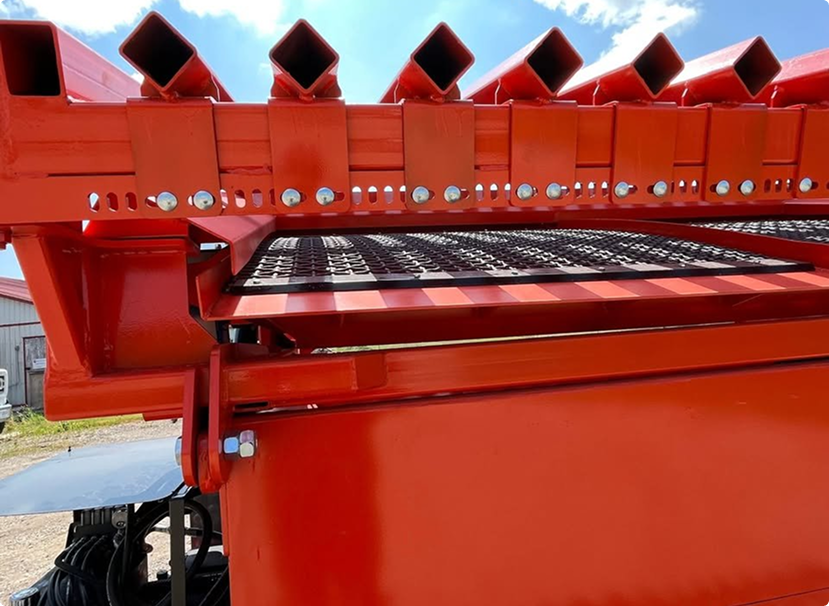

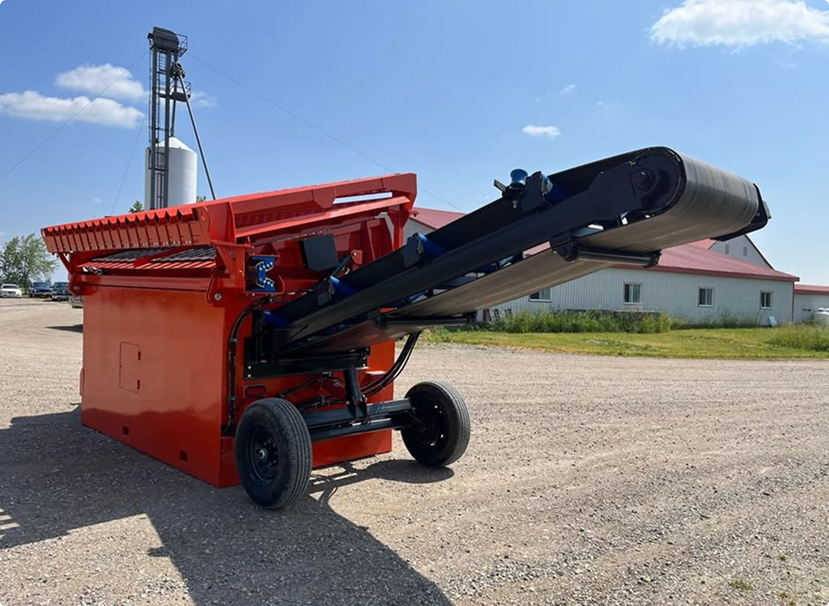

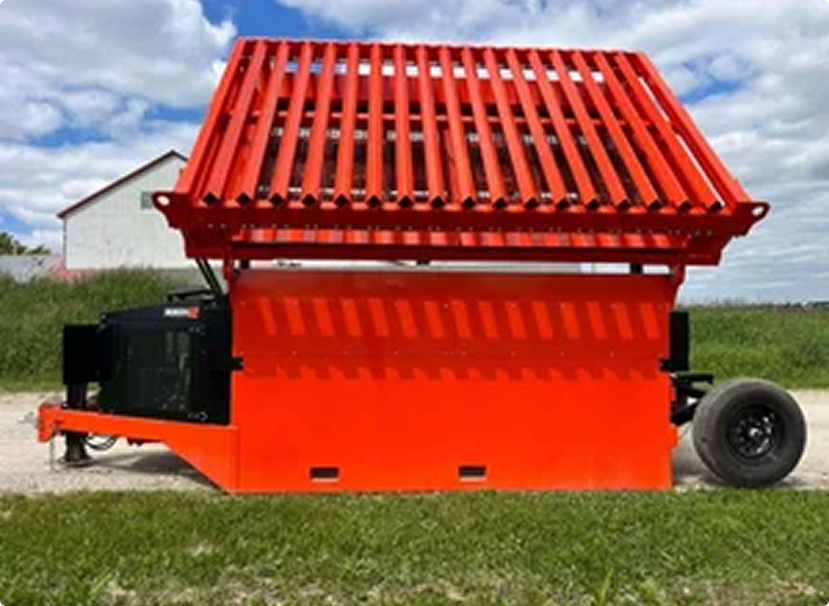

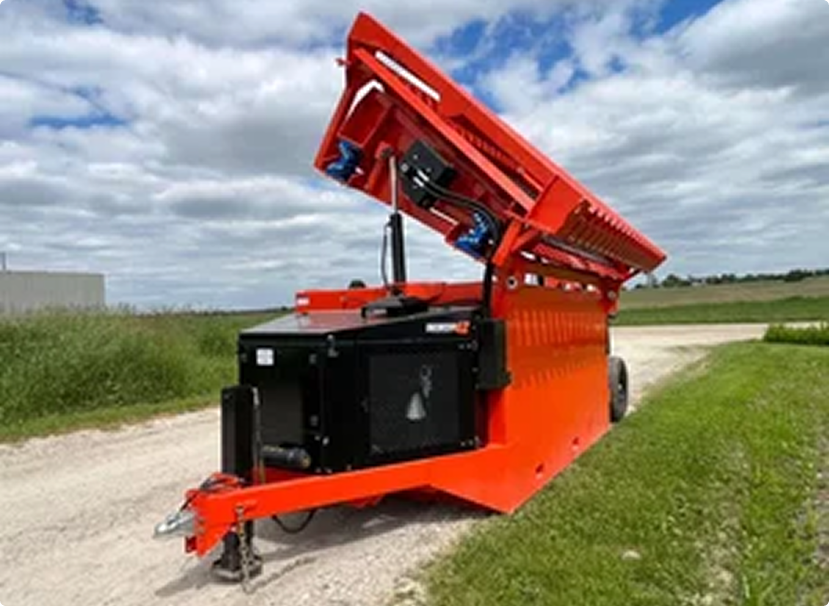

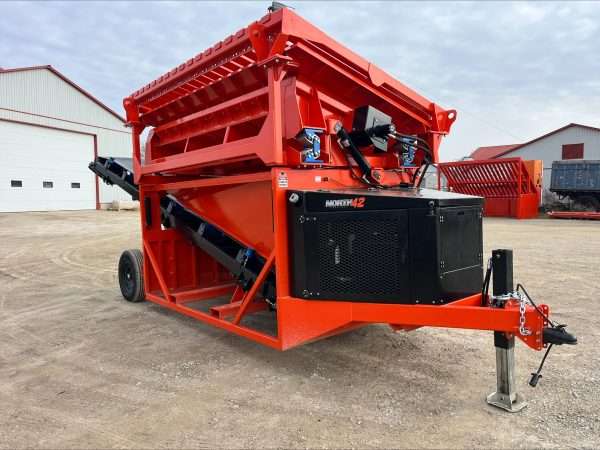

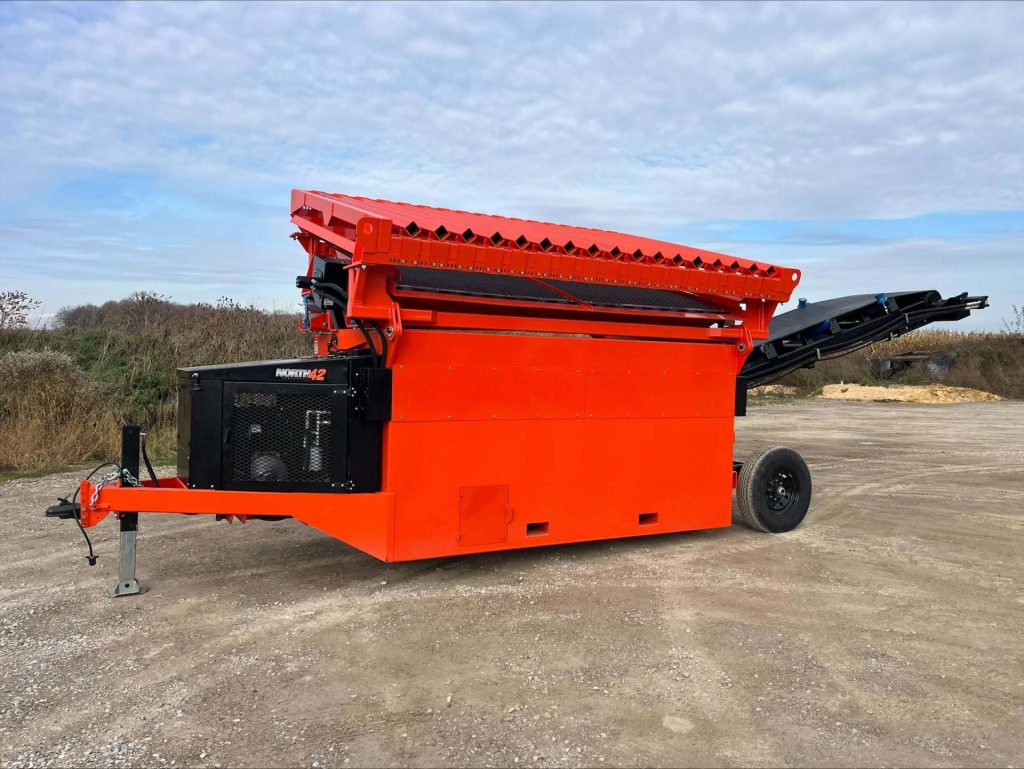

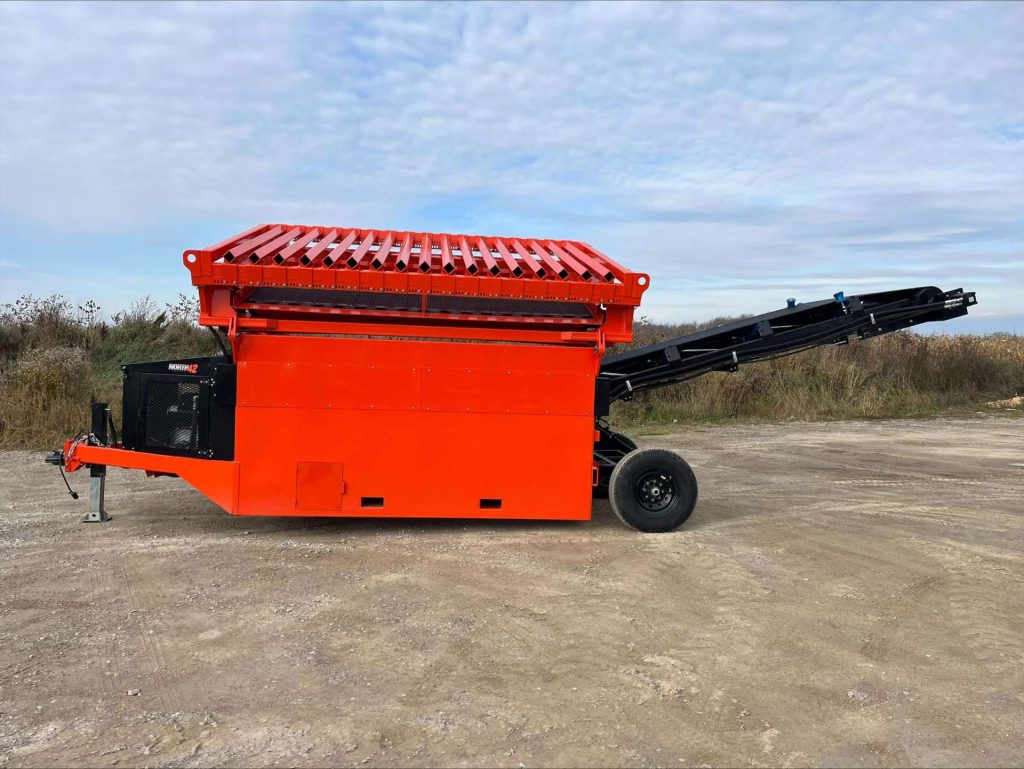

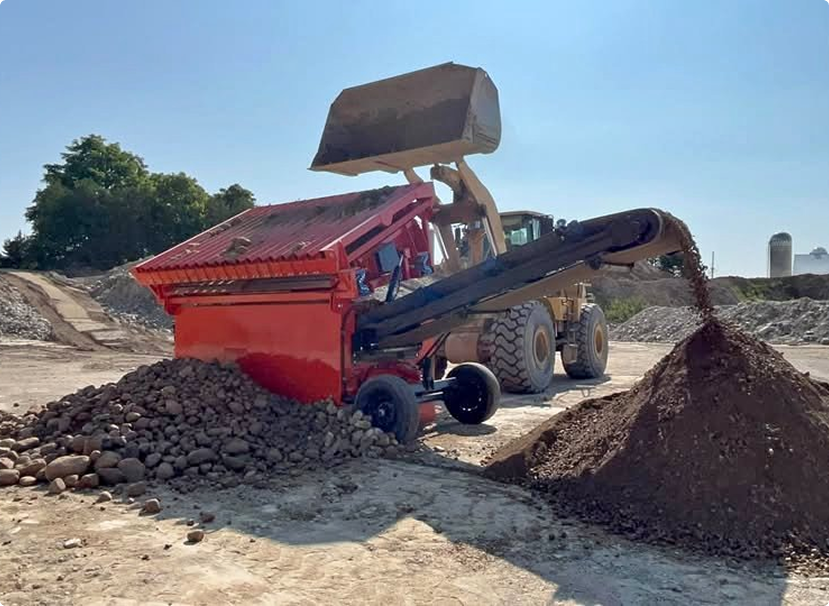

HUSTLER | 3 IN ONE! GRIZZLY BAR + SCREENER + CONVEYOR IN ONE!
BARS
- 3″ square tubing
- 3/16″ wall thickness
- 3″ spacing (can be removed)
CAPACITY
- 100 yards her hour
SCREEN SPECIFICATIONS
- 5′ wide x 10′ long with 1′ wing boards
- 1.5″ x 1.5″ square hole wire woven rock screen 5/16″ diameter wire

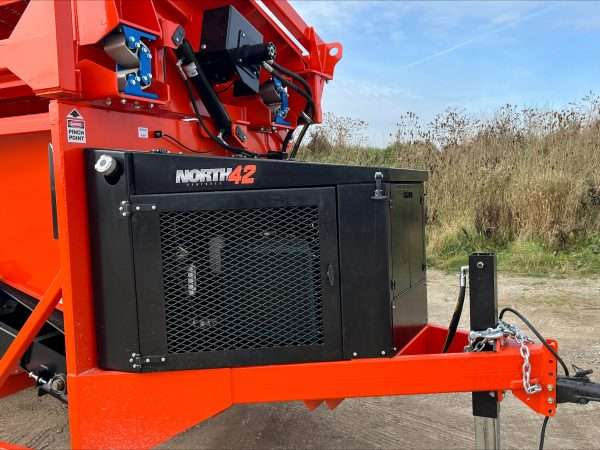

ENGINE
- Kubota Diesel – 24.8hp liquid cooled engine Equipped with Glo Plugs for easy cold starts
HYDRAULIC POWER PACK
- Shaker deck motor
- Hydraulic tilting deck
- Hydraulic rear axel provides better stability
CONVEYOR
- 36″ wide x 11’2″ long belt
- 8’2″ discharge height
WEIGHT
- 12,000 lbs
OVERALL DIMENSIONS
- 7’7″ Wide x 27’6″ Long x 8’11” High
SCREEN ANGLE
- Adjustable hydraulic tilting deck
- 15° lowered – 46° raised
FINISH
- Sherwin Williams primer and finish
TOWING PACKAGE
- Sherwin Williams primer and finish
- Electric brakes & lights
- Tires – 235/75R17.5
- 25/16″ hitch
HUSTLER
Starting From $99,995
Contact Us Today
To learn more about our Screeners, request a quote, or schedule a consultation.
