Additional Information

Category 1 & 2, 180° Boom and Bucket Rotation, 15” Bucket Included,

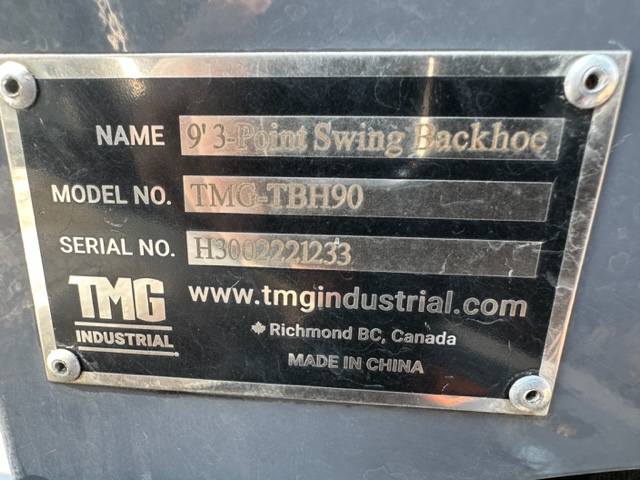

TMG-TBH90

• Compatible w/45-100 HP tractors, 9’6″ digging depth
• 180° of boom swing & 180° of bucket rotation
• 15” digging bucket & rubber padded stabilizer legs
• Designed for high breakout force & burrowing power
• 3-point hitch w/Category 1 & 2 hookups

Brand New In The Crate

$5,795.00

Features

• Extensive reach capacity in all directions with 180° of boom swing and 9’6″ of digging depth so you can access hard-to-reach areas without moving your setup
• Compatible with 45-100 HP tractors and comes with a 15” digging bucket, perfect for digging trenches, installing irrigation systems, landscaping and more
• Built with Italian Hydro Control valves that optimize the distribution of hydraulic pressure for precise timing and performance
• Dual hydraulic cylinder arm and bucket linkage are well-gusseted to withstand high levels of breakout force and burrowing power
• Replaceable bushings, replaceable bolt-on cast teeth and grease fittings on all pivot points make maintenance simple, cost-effective and easy to do
• Stabilizer legs have been fitted with removable/replaceable rubber street pads that cushion the ground and prevent damage to supporting surfaces
• Equipped with a 3-point hitch to accommodate Category 1 and 2 hookups for seamless integration with your current equipment inventory

Specifications

• Digging depth (2 ft. flat bottom): 9’6″
• Overall operating height (fully raised): 125”
• Reach from swing post: 129”
• Loading height (bucket at 60° rotation): 84”
• Dipper boom digging force: 2200 lb
• Bucket digging force: 3300 lb
• Transport height (with boom fully retracted): 80”
• Transport width (with stabilizers up): 58”
• Transport length: 72”
• Ground clearance: 10”-12”
• Transport weight (base unit only-no bucket or mounts): 870 lb
• Bucket rotation: 180°
• Swing arc: 180°
• Stabilizer width (spread): 88”
• Stabilizer width (transport): 58”
• Operating pressure: 2320 PSI
• Hydraulic volume requirements: 5-7 GPM
• Recommended tractor requirements: 30-100 HP
• Flow divider included: Yes
• Bucket sizes available: 15”
• 3-point hitch
• Category 1 & Category 2 hookups
